Using Conductors and Insulators.

Conductors and Insulators in circuit boards.

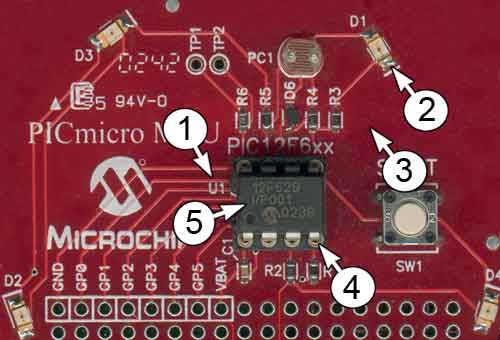

A good example of how we use various materials as conductors and insulators in electronics is given by a printed circuit board.

1. The conducting strips are made from copper, a very good conductor.

2. Electrical connections between the components and copper strips are made with solder (mainly tin), which is another good conductor. It has the advantages of being easy to melt as well as making good electrical and mechanical contact.

3. The board itself is made from a good insulator, usually paper impregnated with resin, which is known as "SRBP" (synthetic-resin bonded paper), or in high quality boards from glass-fibre board. Glass, paper and resin are all very good insulators.

4. The contacts of the chip holder are gold plated. This gives an excellent low resistance contact and also prevents tarnishing (oxidisation), which would otherwise increase the contact resistance over time.

5. The chip is encapsulated in black resin; this gives good electrical insulation and, being black, provides good heat conduction to disperse heat generated within the chip.
